Turbidity sensors measure the extent of light throughout suspended solids in water. The extent of the light in water increases the waters turbidity levels.

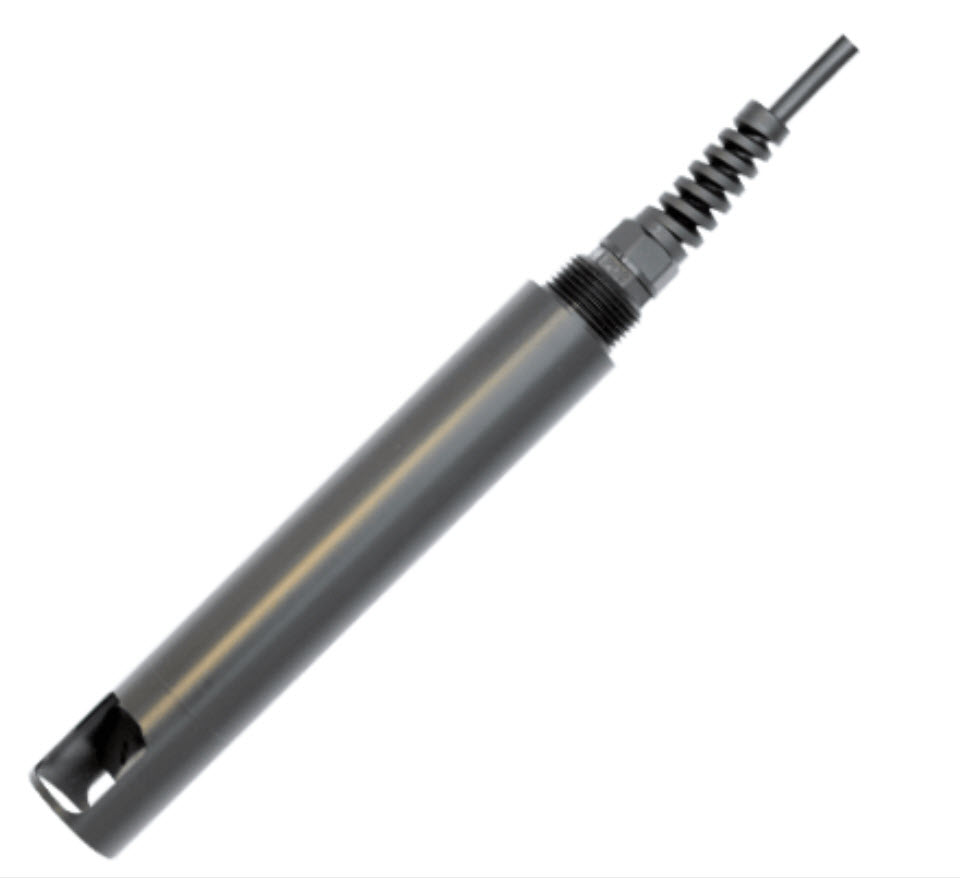

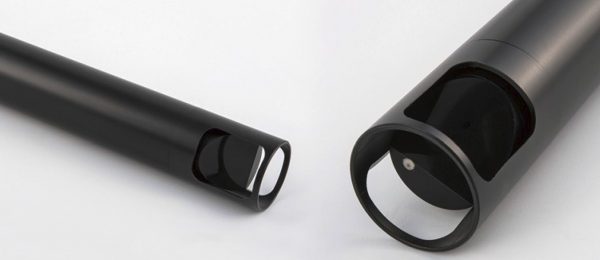

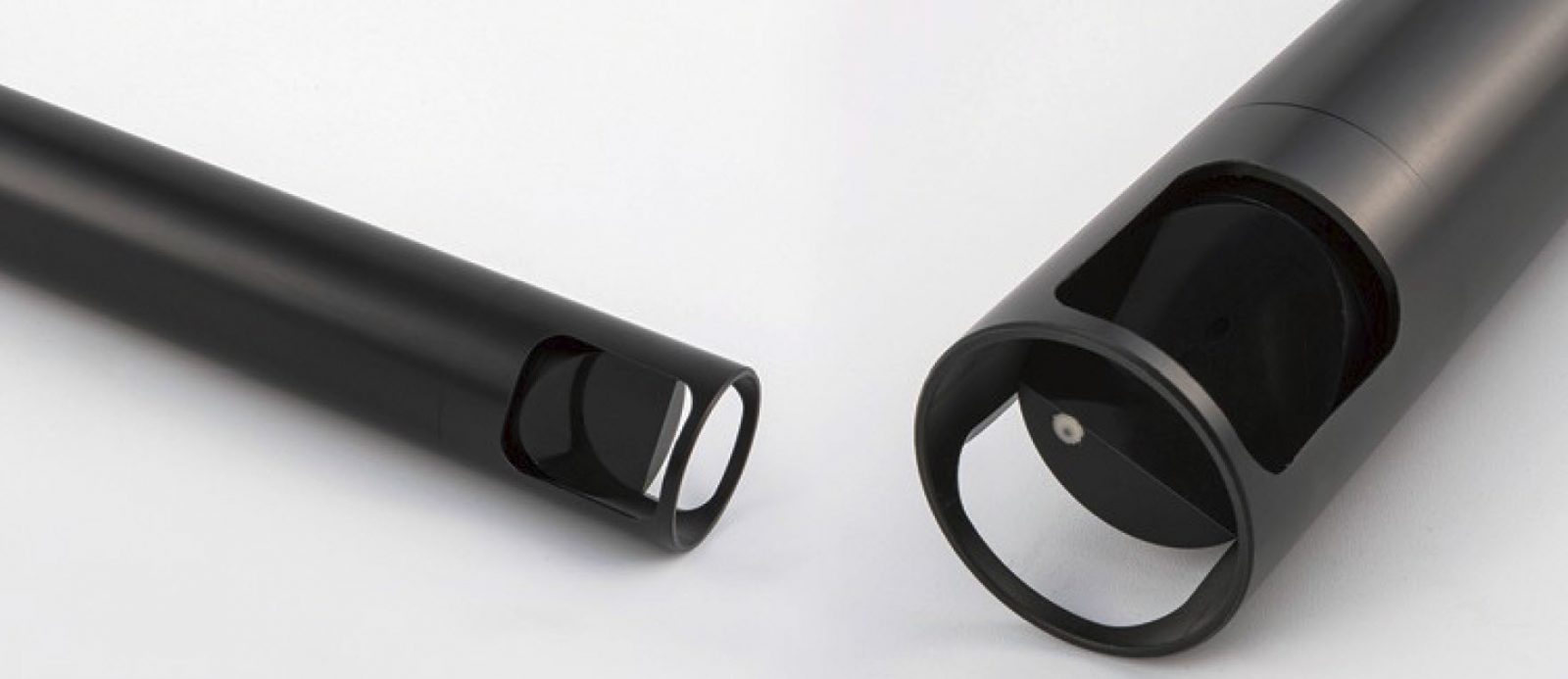

Turbidity Sensor can be used to detect the turbidity value of water quality. It can be used in harsh environment and the monitoring data is stable and reliable. The turbidity sensor based on RS485 communication interface and Modbus RTU standard protocol. It uses 850 nm infrared LED as light source and is not affected by water colour. It is low power optical technology, maintenance-free and consumable.
Application
Surface water
Groundwater
Surface water
Groundwater
Advantage
Corrosion resistant shell
Digital modulation filtering technology
Long-life infrared LED light source
Record storage, plug and play
Sensor supports hot swap function
Corrosion resistant shell
Digital modulation filtering technology
Long-life infrared LED light source
Record storage, plug and play
Sensor supports hot swap function
Parameter
Measuring Principle Optical Scattering
Measure Range 0-4000NTU
Measure Resolution 0.01NTU
Measure Accuracy ±5%
Material POM
Interface RS485 (Modbus RTU)
Measuring Principle Optical Scattering
Measure Range 0-4000NTU
Measure Resolution 0.01NTU
Measure Accuracy ±5%
Material POM
Interface RS485 (Modbus RTU)
