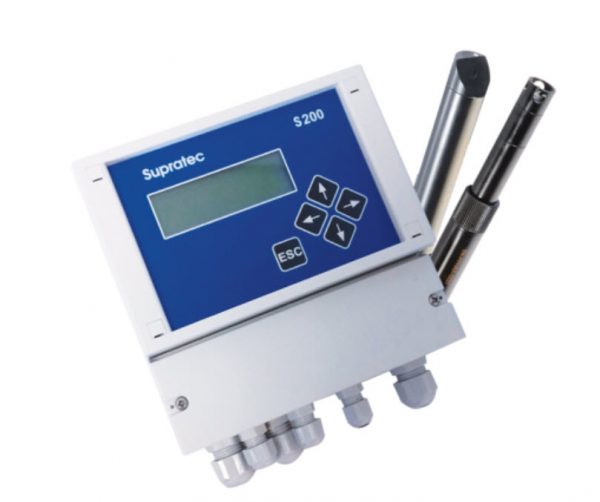

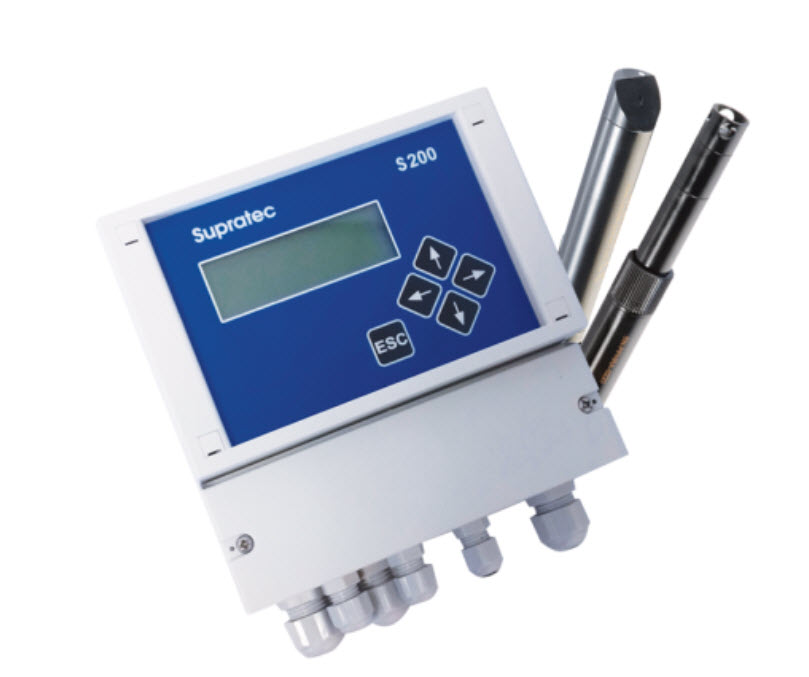

The S200 Digital Turbidity transmitter
Option for 2 Ponsel Digisens sensor inputs
Two 4-20ma and relay outputs
Digital Display
IR Nephelometry Technology
The S200 is a digital water quality transmitter that allows for the connection of two PONSEL digital sensors.
This allows for the user the option to measure –
• pH
• Redox
• Temperature
• Dissolved Oxygen (by optical channel)
• Conductivity
• Salinity
• Turbidity (NTU)
• Suspended material (g/L)
• Sludge Blanket (%)
The measured values from these sensors can be displayed on the S200 transmitter with analog and digital outputs available. The device comes as standard with a preconfigured regulatory functions to optimize process control. All data such as calibration, logs, users and measurements are stored directly on the sensor allowing for extremely reliable and traceable measurements.

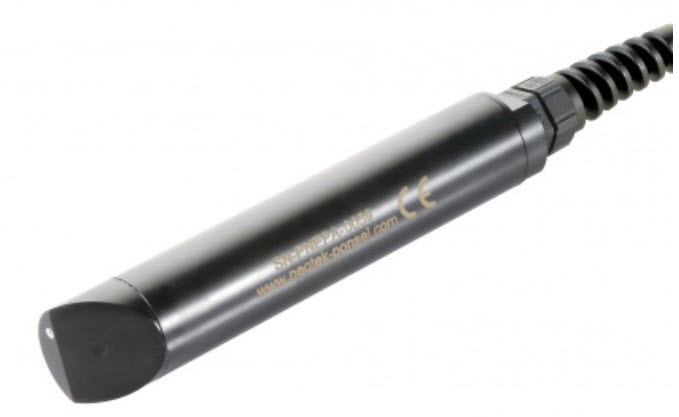

NTU Turbidity Sensor
he NTU turbidity sensor is based on IR nephelometry technology (850nm). The NTU can be easily calibrated using a formazin turbidity standard, the sensor is auto ranging and can offer measurements up to 4000 NTU. The sensor incorporates a low cost optical technology which requires low maintenance and requires no consumables.
