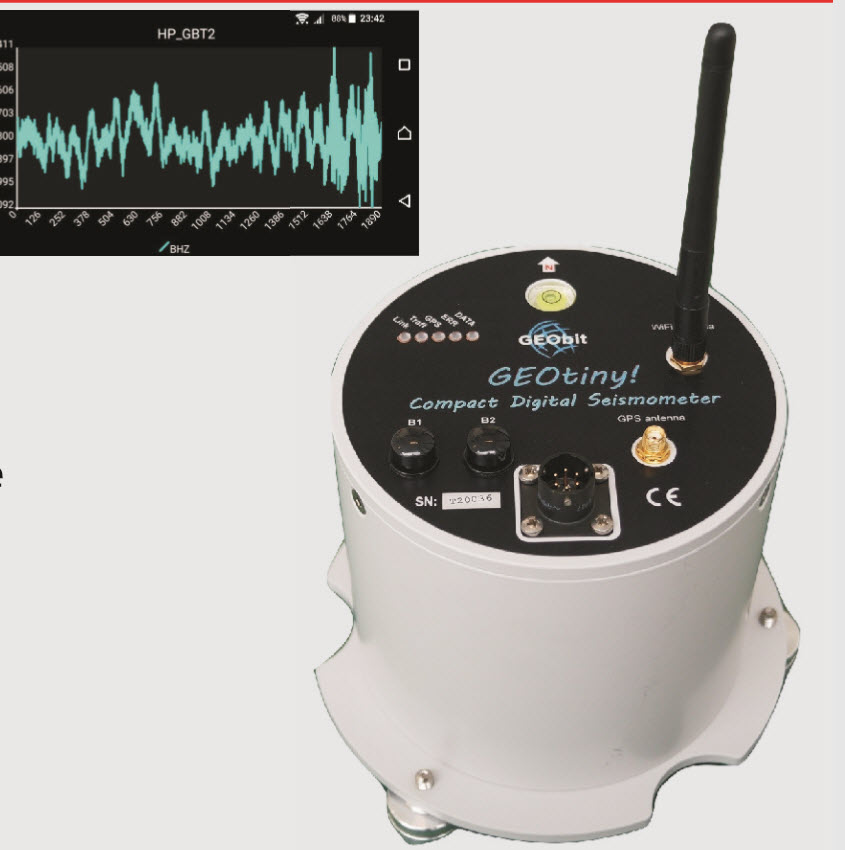

This is a compact miniature digital seismometer which integrates three seismic and three acceleration channels. It supports high resolution 24bit digitizer, embedded linux OS and GPS or NTP timing.
Seedlink server ensures reliable real time data telemetry while large storage volume ensures long period local data recording. The instrument has very low power consumption so it can operate getting powered from a small 12Vdc battery. Due to its small size provides the ability to be buried underground.
Modular sensor interface allows the user to select between a variety of sensor types and frequency corners (20sec, 10sec, 5sec, 2sec, 1sec, 2Hz, 4,5Hz), thus covering the short period and wide band seismic range. Design simplicity is the great advantage and it is reflected to the price which is only fraction of the common commercial seismometers. The user is able to deploy even 100% more units than using common seismometers at same cost.
Features
- 3 components seismic sensor
- Low power consumption
- Cost affordable design
- Only 130mm D / 155mm H Integrated 24bit digitizer
- Embedded Seedlink Server
- Realtime Telemetry and Local Storage
- MiniSeed data format Linux open source OS Web Interface Menu SSH, SFTP,Telnet Modular seismic sensor design
- Near Broad Band sensor 20s to 50Hz
- Customized Sensor Corner Frequency High Sensitivity 1500V/m/s operation Range: -20 +70C
- Waterproof IP67 Aluminum Case
Applications
- Aftershock monitoring
- Regional Seismicity
- Monitoring Seismic Tomography
- Acquisition Induced Seismicity Monitoring
- Volcano Monitoring Structural Monitoring HVSR, MASW surveys
- Educational Seismograph
- Personal Seismograph
