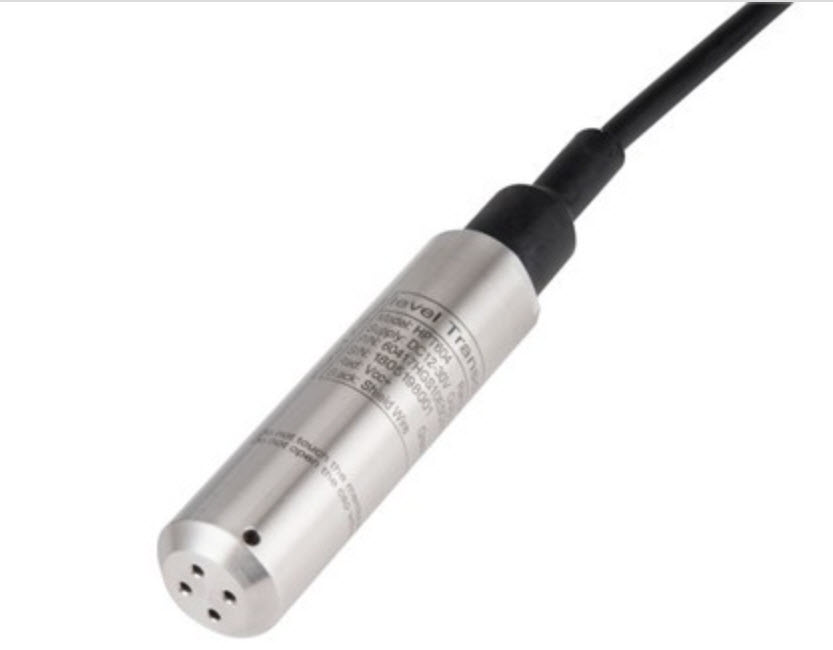

The Submersible Water Level Sensor is suitable for any water level measurement. It adopts 316SS all-welded stainless steel body design, which can resist the impact and erosion of any medium.
Application :
●Water level sensor
●Submersible water level sensor/input level sensor
●Hydrostatic level measurement
●Water pressure level measurement
●Deep well and groundwater monitoring
●Sea water level measurement and control
●Irrigation equipment
●Level measurement in pumping station
Advantages
- 316SS all-welded stainless steel body and 316L stainless steel diaphragm
- Unique 8 pressure holes design
- IP68 full sealed plastic waterproof design
- Construction shock and erosion
- Optional lifetime lightning protection
Technical Data
| Range | 0~0.5 M…500 M H2O optional |
| Output | 4~20mA,0~5V/0.5~4.5V;RS485 ,RS232,Hart |
| Power supply | 12VDC~30VDC |
| Accuracy | 0.15%F.S,0.25%F.S, 0.5%F.S optional |
| Working temperature | -30°C~+85°C |
| Working temperature | -30°C~+85°C |
| Temp Compensation | -10°C~60°C or by Customized |
| Zero Temp. Drift | 0.03%FS/°C（≤100kPa）； 0.02%FS/°C（>100kPa） |
| FS Temp. Drift | 0.003%FS/°C（≤100kPa）； 0.002%FS/°C（>100kPa） |
| Electronic connection | Fixed cable and water proof IP68 |
| Response time | ≤4 to 10 ms; ≤1 ms (Customized) |
| Cable | PE cable with vents |
| Certificate | CE,RoHS |
| Application | Liquid measuring in tanks ,rivers ,lake,Sea,Well |
Level range: 0-5m Output : 4-20mA
Power supply: 12~36VDC 5m directly cable: IP68
