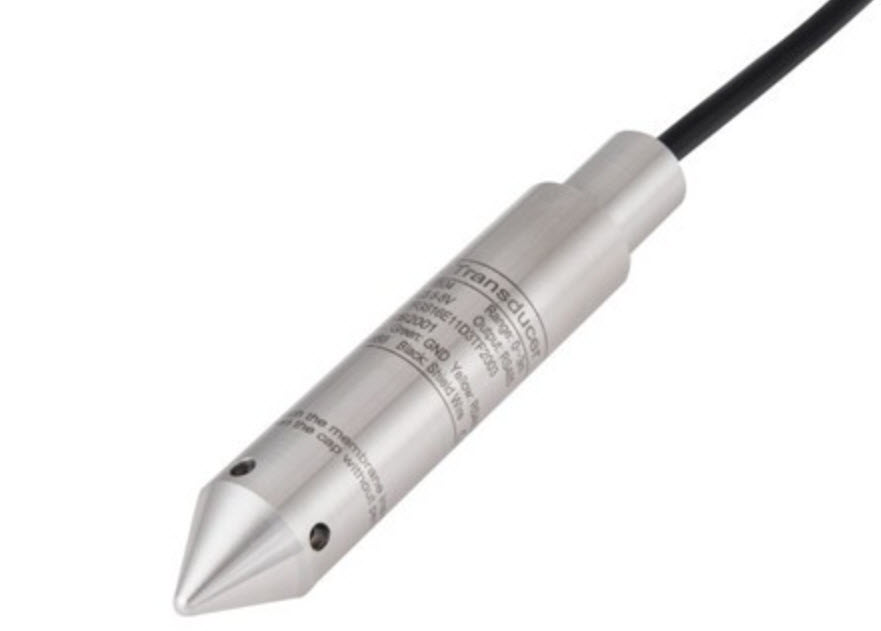

The Submersible Digital Level Sensor is designed with tapered and fully sealed IP68 waterproof design, so it is suitable for all kinds of harsh environment measurement.
Application :
●Gas tank level measurement
●Oil & Diesel level monitoring
●Underground petroleum level measurement
●Monitoring of Irrigation Equipment
●Control of Pumping Stations
Advantages
- RS485 support PC software configuration and field calibration
- Battery powered and solar powered are available
- Suitable for all harsh environment measurement without maintenance
- Optional PT100 temperature measurement
- SCE, RoSH and ATEX Approved
Technical Data
| Range | 0~1 M…500 M H2O optional |
| Output | Double 4~20mA;4-20mA+Temp Output(Ω),
RS485 RTU Modbus ;Double RS485 |
| Power supply | 12VDC~30VDC |
| Medium compatible | SUS304; 316L SST; Titanium Alloy Optional |
| Accuracy | 0.1%F.S,0.15%F.S, 0.25%F.S |
| Working temperature | -30°C~+70°C |
| Temp Compensation | -10°C~60°C or by Customized |
| Zero Temp. Drift | Typical: 0.03%FS/°C, Max: 0.1%FS/°C |
| FS Temp. Drift | Typical: 0.002%FS/°C, Max: 0.1%FS/°C |
| Electronic connection | Fixed cable and water proof IP68 |
| Response time | ≤4 to 10 ms; ≤1 ms (Customized) |
| Cable | PE Cable （ Water Proof ） ; PUR Cable （ Oil Proof ）;
PTFE Cable （ Anti-Corrosive ） |
| Certificate | CE,RoHS ATEX ExiaII CT6 Ga |
