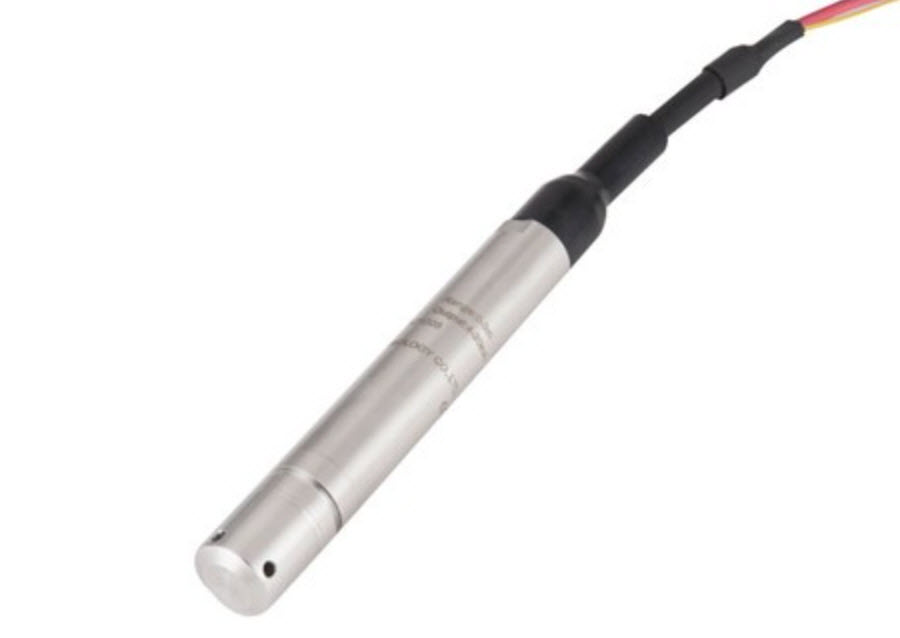

The Submersible Borehole Level Sensor is designed for ground water and drilling fluid level measurements. Based on the fluids design, it can ensure the stability of the measurement.
Application :
●Borehole level sensor
●Deep well measure
●Level sensor in drilling platform
●Level measurement in storm water
●Sediment water level measure
Advantages
- Slender design Ø19mm Diameter Body
- All welded 316SS body and 316L stainless steel diaphragm
- Unique triple waterproof design, IP68 water proof
- Throw in sludge more than 10 years and continue to be subjected to gravity
- Fluid design is adopted to reduce the impact of medium on the probe
Technical Data
| Range | 0~1 M……500 M H2O optional |
| Output | 4~20mA,0~5V/0.5~4.5V/0-10V |
| Power supply | 12VDC~30VDC |
| Accuracy | 0.25%F.S, 0.5%F.S optional |
| Electronic connection | Fixed cable and water proof IP68 |
| Pressure port | With stainless steel filter (Standard type), nylon filter, |
| G1/4’’ male thread, 1/4’’NPT male thread optinal | |
| Working temperature | -30°C~+85°C |
| Temp Compensation | 0℃~70℃ |
| Life time | ≥100,000,000 pressure cycles |
| Certificate | CE,RoHS |
| Application | Depth well , Borehole etc |
Level range: 0-5m Output: 4-20mA
Power supply: 12~36VDC 5m directly cable : IP68
