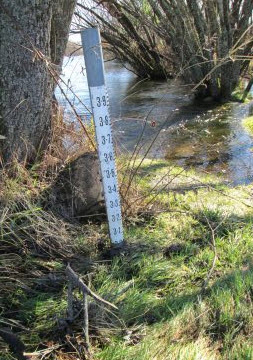

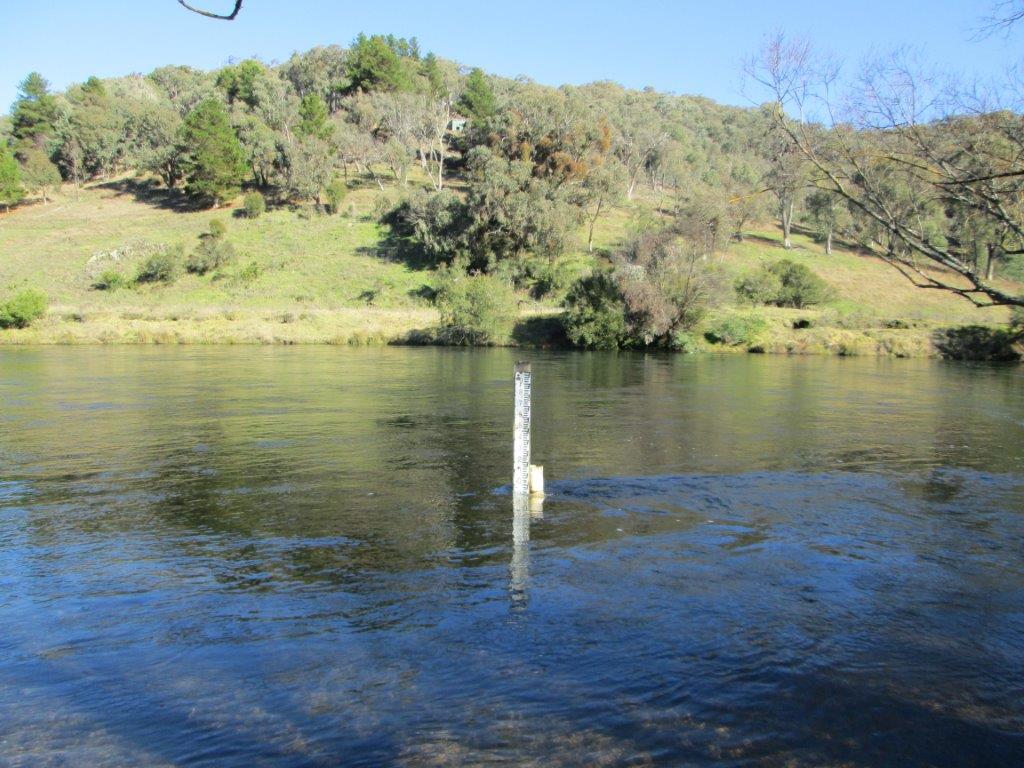

The staff gauge is used for a quick visual indication of the surface level in reservoirs, rivers, streams, irrigation channels, weirs and flumes, and wherever accuracy and readability are important.
These environmentally rugged iron gauges are finished with a special porcelain enamel to insure easy reading and resist rust or discoloration. They virtually never need replacement under normal conditions. Each gauge is accurately graduated and has grommeted holes for easy fastening to walls, piers and other structures.

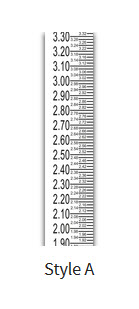

Style A is the standard gauge and is 4 inches wide, marked at every foot, tenth, and .02 foot with total elevation, and is available in 3 1/3-foot sections for numbering 0 to 99.92 feet.
801-001 0-3.32 ft 2.3 lbs.
801-002 3.36-6.72 ft 2.3 lbs.
801-003 6.76-10.12 ft 2.3 lbs.
801-004 10.16-13.52 ft 2.3 lbs.
801-005 13.56-16.92 ft 2.3 lbs.
801-006 16.96-20.32 ft 2.3 lbs.
801-007 20.36-23.72 ft 2.3 lbs.
801-008 23.76-27.12 ft 2.3 lbs.
