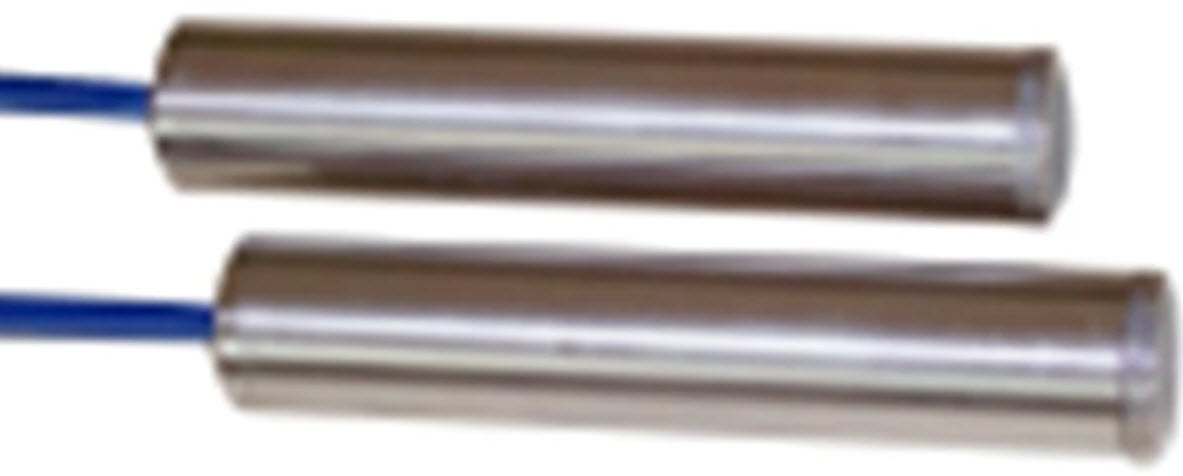

The Small diameter piezometer is used to measure fluid pressure, such as groundwater level, dam body, pore water pressure of soil. It can also be used to fix in the hole to monitor the pressure or water level of the well and the piezometer tube. YT-300B can be buried in the foundation of a hydraulic structure or other building for a long time to measure the pore (or infiltration) water pressure inside the structure or foundation. Temperature measurement is also available with thermistor.
Main Specifications:
Measuring Range: 0.1 ~ 1.6 MPa (Extended available)
Resolution: ≤ 0.04 %F•S
Accuracy: ≤ 1.0 %F•S
Temperature measure range: -25°C ~ +60°C
Temperature accuracy: ±0.5°C
Dimension: Φ21×110mm
