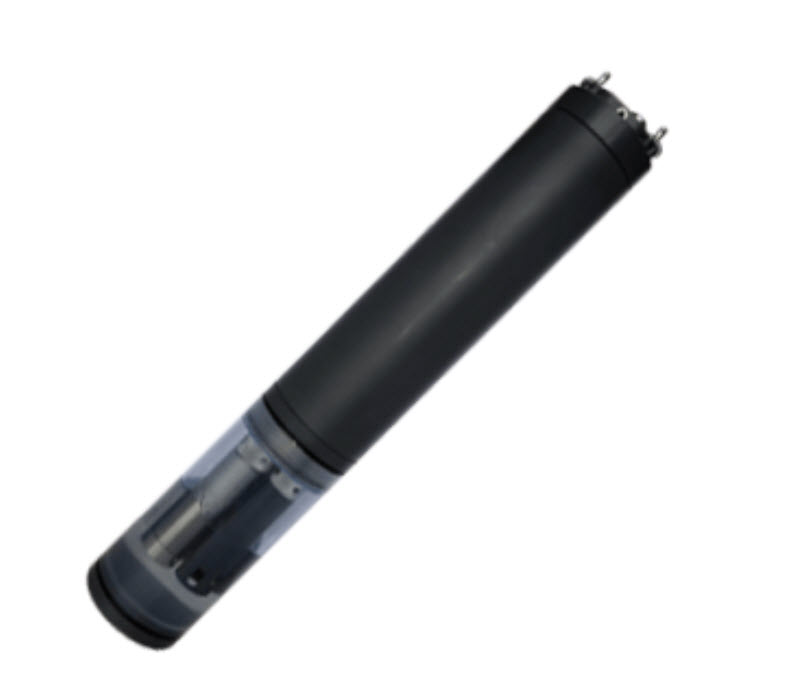

The Multi-Parameter Water Quality Meter is a portable five-in-one sensor. It can monitor PH, dissolved oxygen, conductivity, turbidity and temperature at the same time. It can also select extra COD, chlorophyll and cyanobacteria items,used for surface water and groundwater.
Advantages
- High reliability: suitable for long-term work in the field environment, stable measurement, strong anti-interference ability.
- Flexible and portable: sensors can be freely combined, replaced independently, plug and play, and can be operated remotely.
- Scalability: Monitor multiple parameters and install four sensors at the same time.
- Various applications: long-term online work, on-site rapid determination, emergency monitoring, groundwater monitoring.
- Strong case: POM or PVC material, corrosion resistance, can work under water for a long time.
| MONITORING PARAMETERS | Temperature / PH / Conductivity / Dissolved Oxygen / Turbidity / |
|---|---|
| MONITORING PRINCIPLE | Optical |
| POWER-IN | DC12/24V / Solar Power |
| INTERFACE | RS485/RS232/Wifi/BT/LTE |
| MODEL | ZWQ500 | |||
|---|---|---|---|---|
| Measure Items | Measuring Principle | Measure Range | Measure Accuracy | Response Time |
| Temperature | RTD | -30-130℃ | ±0.1℃ | N/A |
| pH | Glass Electrode | 0-14pH | ±0.1pH | <15s |
| Conductivity | Graphite Electrode | 0-200000μS/cm | ±1% | <15s |
| Dissolved Oxygen | Fluorescence | 0-20mg/L | ±0.1mg/L | <45s |
| Turbidity | Scattering | 0-4000NTU | ±5% | <30s |
| Interface | RS485 (Modbus RTU) | |||
| Dimension | D75mm×L423mm | |||
| Operation Environment | 0-60℃ 0-6bar | |||
| Power | DC12V/24V Solar | |||
