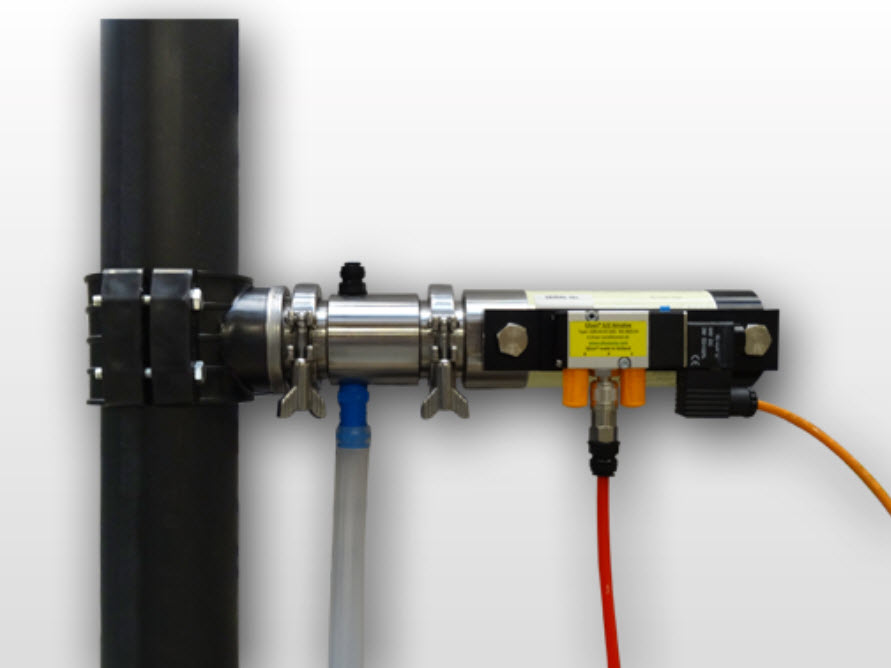

The Inline Guillotine is an automatic fixed volume sampler for use on 100 % filled and pressurised effluent lines. The sampled process must be liquid and free of air/hard solids.
Designed for sampling of raw wastewater, the Inline Guillotine sampler works with a maximum process pressure of 2.5 Bar and optional up to 5 Bar. This sampling method complies to ISO 5667-2, 5667-10 and NEN 6600-1 and is equipped with a pneumatic actuator (6-8 bar).
The Inline Guillotine Sampler can be volume, time, or event proportional controlled via a controller or (when ordered only the sampler hardware) via a third party PLC. Mounting fittings for the inline guillotine sampler can be supplied (option) for plastic or Stainless Steel piping.
