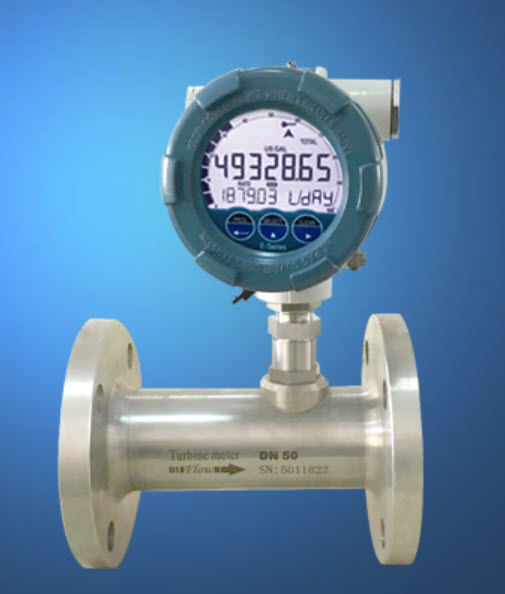

The E-series is a popular model in our range of explosion proof flow rate indicators.The E-series distinguishes itself by its quality and functionality driven European design and manufacturing.It is more than fulfilling the rules for explosion proof design, it is about safety during the daily operation. Often, the environment is much tougher than the explosion proof requirements demand. Thus dangerous conditions may be experienced due to a broken enclosure or a poorly made flame path. Ruggedness and reliability is where Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven explosion proof flow rate indicator / totalizer.

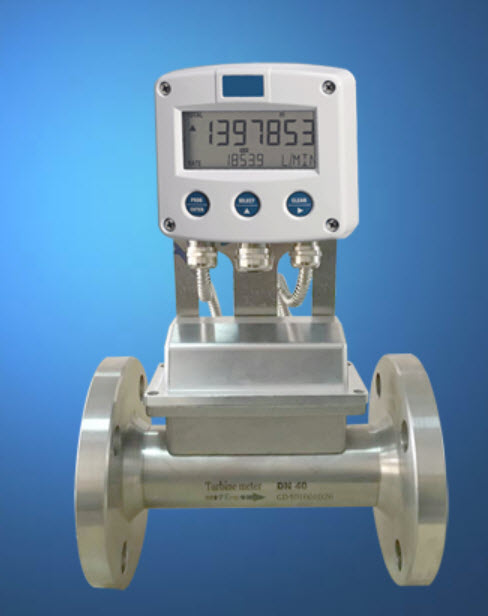

F series is an extensive selection of indicators, controllers and monitoring systems for liquid and gas applications as well as for level ,pressure and temperature measurement in industrial environments. Save on installation and maintenance costs. Experience less troubles and hassle. Porfit from its ruggedness and flexibility in mounting and vast range of function. Appreciate its simplicity and user-friendliness and broad and flexible applicability. It comes to high performance standard products and solutions for safe and hazardous area applications.

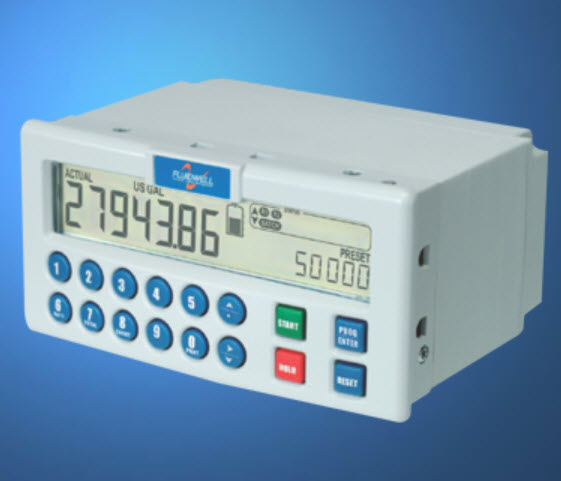

N410 Batch Controller

Advantage

• Save time and cost with the easy to operate numerical keypad;
• Key information at a glance as the display simultaneously shows actual value, preset value, batch process indication, relay status and measuring units;
• Easy installation with the rugged aluminum DIN-size panel mount enclosure.Features
• Five control inputs for remote START, HOLD, RESUME, keypad lock and external alarm;
• 7 large digits for actual value, flow rate, total and 10 smaller digits for preset value, accumulated total and batch count;
• Selectable on-screen engineering units; volumetric & mass;
• Power requirements: 24V DC /110 – 230V AC;
•  Sensor supply: 8.2 / 12 / 24V DC;
• No-flow monitoring;
• Automatic overrun correction;
• Modbus communication option RS232 / RS485; Application
• Accurate batching or filling of liquids where the batch size   changes frequently;
• The N410 offers the perfect solution for batch control applications where a user-friendly instrument is required. Whether you focus on its clear display information,the very easy to operate numerical keypad or the easy menu-driven configuration structure.
