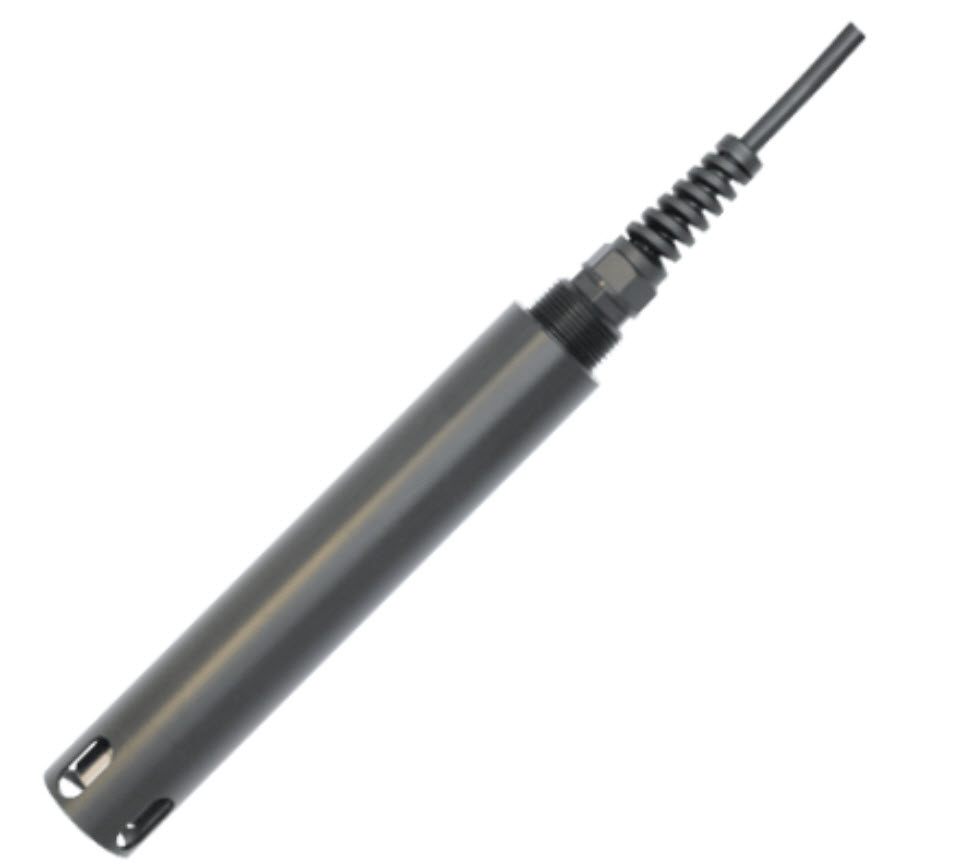

The dissolved oxygen sensor for monitoring water quality. It can be used for on-line monitoring and for harsh environment in the field surface and ground water.
Corrosion resistant shell, with atmospheric pressure, salinity, temperature compensation calculation.
| Monitoring Parameters | Dissolved Oxygen |
|---|---|
| Monitoring Principle | Fluorescence |
| Power-In | DC12/24V / Solar Power |
| Interface | RS485/RS232/Wifi/BT/LTE |
| Model | ZWQ-DO1 |
|---|---|
| Measuring Principle | Fluorescence |
| Measure Range | 0~20 mg/L |
| Measure Resolution | 0.01 mg/L |
| Measure Accuracy | ±0.1 mg/L |
| Response Time | < 45s |
| Interface | RS485（Modbus RTU） |
| Material | POM |
| Electrode Cable | 3m |
| Electrode Dimension | D34mm L205mm |
| Power | DC12/24V |
Advantages
- New type of thicker fluorescent coating can prolong the storage and service life more than three times.
- The annular exudation interface is not easy to plug and has stronger pollution resistance.
- No electrolyte, no material interference, more accurate measurement.
- It has the function of calibration record storage, plug and play, and no calibration is needed for the first use.
- Sensor supports hot swap function.
