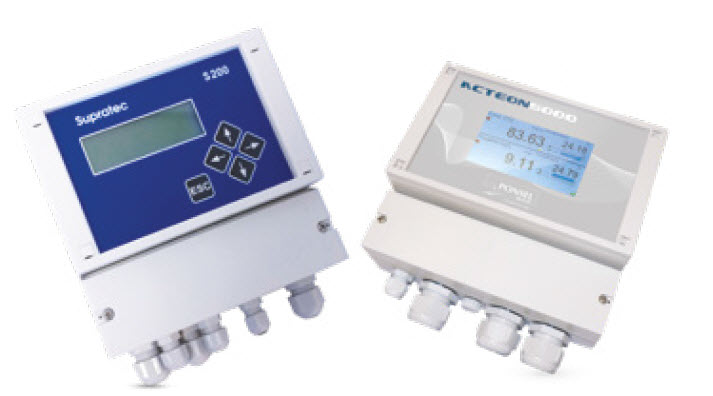

The fixed Digital Transmitter Multiparameters Instrument – Intelligent transmitter for intelligent sensors: Dissolved oxygen / Turbidity / pH / T°C / ORP / Conductivity / Salinity / COD, TOC, BOD, SAC254.
Waste water treatment plant (aeration tank for control/regulation of Nitrification / Denitrification process, Drinking water (control raw water), Industrial waste water treatment (reject control, regulation), Survey of surface water, Fish farming and wine testing.
Software and features
2 digital output • Choice of 2 programmable parameters according to connected sensor
2 relay • NO / NC customizable
• Instruction point : configuration of the working range (Hysteresis / direction) and time of activation
• Command of external cleaning system
• Alarm output, probe default
Atmospheric pressure sensor • For pressure Oxygen compensation
Technical specifications
Display • Back-light graphic lcd touch-sensitive – Size: 95 x 54 mm
Analogic output • 0/4.00 – 20.00 mA with galvanic insulation • Charge max 250 Ω
Relay output • 6 A /250 V
Conditions of functioning • Temperature of functioning: – 15 °C à + 50 °C • Storage Temperature / transport: – 15 °C to + 50 °C
Power supply Electric protections
• 100-240 V AC / DC 50-60 Hz • Option 9-28 V DC / DC • Electric protection : compliance with EN61010-1
:2010
Dimensions (L x H x P) • 213 x 185 x 84 mm
Protection • IP65
Advantages
• Touch-sensitive screen
• Technology of digital communication
• 1 to 2 digital sensor connexion
• Wide graphic screen: display until 4 measures
• Analogic output Out 4-20 mA, programmable Relays (visible state main screen)
• Simple and fast intuitive Programming
• Wide range of digital sensors
• Modbus RS485 output
