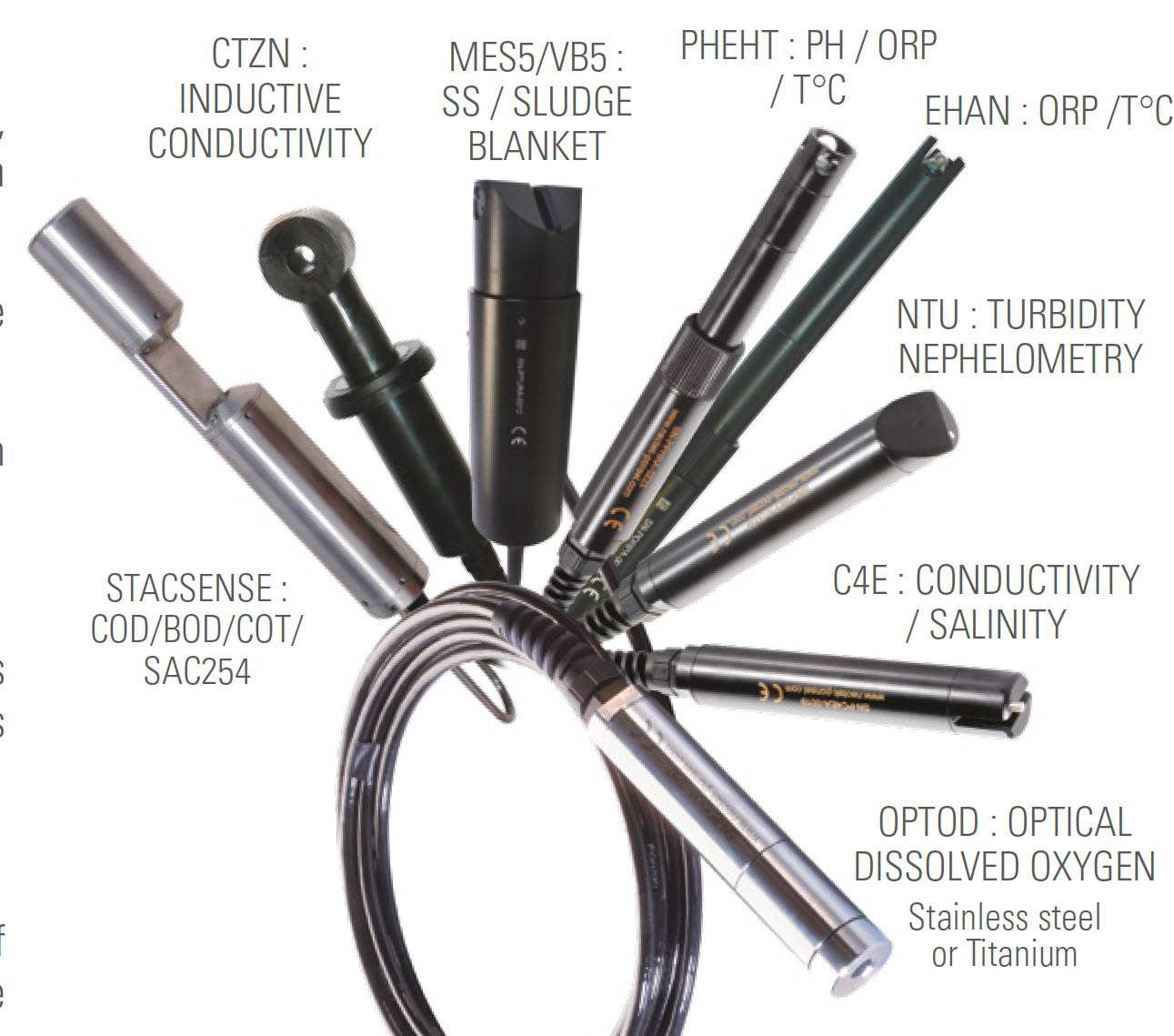

The Digital Sensors DIGISENS (smart water control sensors) sensors can connect to any type of recorder, transmitter or controller with a Modbus RS485 input, making data transfer more reliable.
More than 240 indexed sensors can be connected on the same RS485 input. The digital signal processing combined with the pre-amplification of the measurement allow high reliability.
Integrated transmitter All calibration data for (offset, slope), history, users and measures be processed directly in the sensor and transmitted via Modbus RS-485.
Mechanical
Digital sensors are compact, rugged and light. They are made of stainless steel or PVC materials for portable or stationary use in the most fouling environments.
Advantages
Universal communication Modbus RS485 / SDI-12
Compatible with all types of transmitters, recorders, remote control, controller equipped with a RS485 input or SDI-12
Integrated transmitter (recording of calibration data, history and measurement processing in the sensor)
Ultra-low power technology
Simple, friendly and intuitive this is a support to configure the sensors, the calibration menu, to follow in real time the measurement of the selected parameters and to record the measured parameters.
Box of communication and power supply mono and multichannel Modbus : Destined to the permanent instrument
installations and supplementing the offer of digital sensors PONSEL, the junction boxes mono and multichannel PONSEL are easy to install. The module 4001 allows the connection of digital sensors PONSEL with all types of dataloggers, transmitter and remote systems or automates with an input Modbus RS485.
References
Module 4001 – 5 SENSORS BARE WIRE CABLE/1 CONNECTOR FOR ODEON CABLE PF-ACC-C-00255
CABLE MODULE 4001 – ODEON PF-ACC-C-00284
MODULE 4200 RS485/USB CONVERTOR FOR ONE SENSOR NC-FIX-C-00020
MODULE 4200 RS485/USB CONVERTOR FOR TWO SENSORS NC-FIX-C-00021
CALSENS SOFTWARE LO-EMB-C-00031
CABLE TO CONNECT A BARE WIRE SENSOR TO ODEON PF-ACC-C-00082
