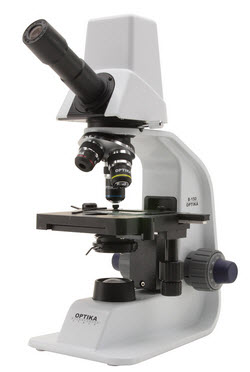

The digital microscope B-150 series has been designed to fulfill all requirements of educational laboratories.
The available models allow a pleasant and effective approach to the world of microscopy. The quality of the optics, the reliability of the mechanical parts and the excellent price/quality ratio rank these instruments at the top of their category.
General Features
Heads
Digital, Monocular or Binocular, 360° rotating, 45° inclined
Focusing
Coaxial coarse and fine focusing mechanism (graduation: 0.002mm) with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Specimen stage
Double layer mechanical sliding stage, 125 x 116mm, 76 x 30mm X-Y movement range. Specimen holder for one slide. Vernier scale on the two axes, accuracy: 0,1mm.
Illuminates
Light source type: white LED; light intensity controlled by a knob on the left side of the base. LED power: 1W. Color temperature: 6300K LED average lifetime: approx. 50,000h.
Condenser
Abbe condenser, 1.2 N.A., pre-centered.
Power supply
Input Voltage: 100-240Vac / 50-60Hz
Output: Output: 6Vdc, 2.5A.
