This sensor features a “long life” reference electrode eliminating the need to frequently replace the electrode cartridge. However, cartridge replacement is simple and may be performed by the end-user in the field.
This sensor has been designed for both handheld and in situ applications and offers quick time response, minimal flow dependence and low power consumption.
SPECIFICATIONS
Measuring Range 0-14 PH
Accuracy ±0.02pH
Resolution 0.01pH
Temp. Compensation Pt1000, 0 to 100°C Automatic.
Respond Time T90<10s
Operate Pressure
0 to 100 psig (6.9Bar) @ 65°C standard. Optional HP sensor up to 300 psig (21Bar) @ 140°C (consult factory)
Operate Temp. 32 to 149 °F (0 to 65°C) standard. Optional HP sensor up to 140°C (consult factory)
Power Supply 12 to 30VDC, the maximum consumption 0.5W
Interface RS485 Modbus RTU
Material Glass, PVC standard. Optional 316L, PVDF, PTFE (consult factory for others)
IP Rating >IP68, submersible
Weight 1.9 pound (0.85kg), standard (consult factory for optional sensor configurations).
Dimension Dia. 1” × 12” (OD 25.4 × 304.8 mm) standard. More length available.
Mounting Immersion, Optional Insertion with Retractor Assembly and “T” handle
FEATURES & BENEFITS
Robust pH & Temperature sensor series
Digital smart sensor, calibration and history data stored in sensor
Plug and play operation
Lightening and surge protection for worry-free power and reliable RS485 communication
Easy to recalibrate with GDC series terminals or computer with Delta-Phase ViewTM software
Optional Self-Diagnosis function
Simple cartridge replacement on standard model
APPLICATIONS
Waste water treatment Municipal or Industrial sourcing and discharging
Environment monitoring Surface water including seawater or ground water
Water treatment Drinking water, High purity water
Industrial process control
■ Cooling Tower
■ Steam condensation
■ De-sulfurisation system
■ Neutralization
■ Others

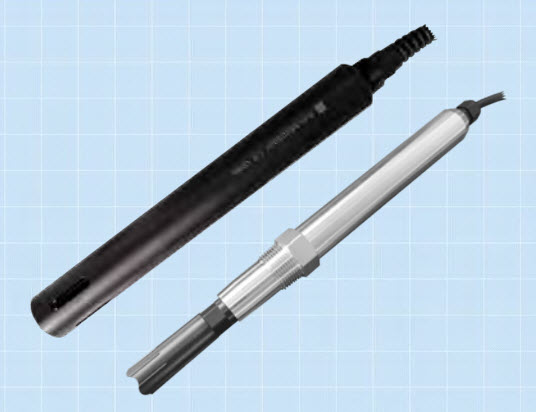

The pH sensor consists of a measuring electrode, a reference electrode (Ag/AgCl), a Gel electrolyte (KCl), a temperature electrode, a smart signal processing module (SSP) and a housing.
The PH7 sensor has been designed to perform under widely varied conditions including pure mountain water, lakes and rivers, seawater, and industrially process and wastewater.
