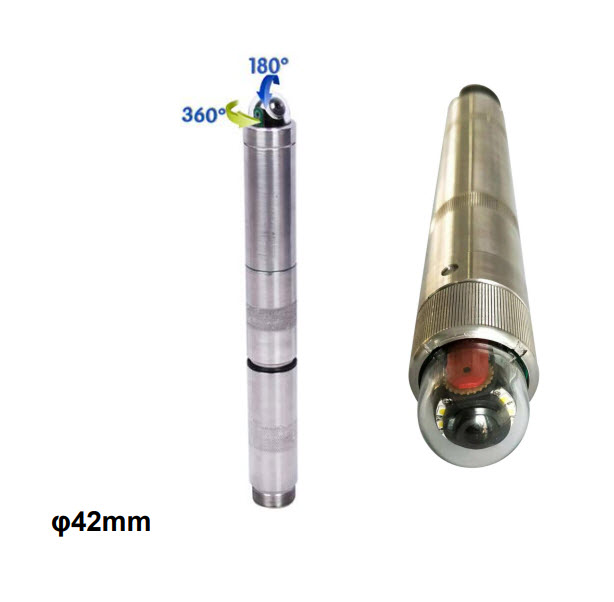

Rotary Borehole Camera 360 degrees clockwise and counterclockwise infinite rotation, tilt 180 degrees flip.Brightness and focal length adjustment: the surface manually controls the direction and angle
of the downhole camera, the brightness of the light source and the camera focus. 5 levels of
dimming, Front 6 highlight LED.

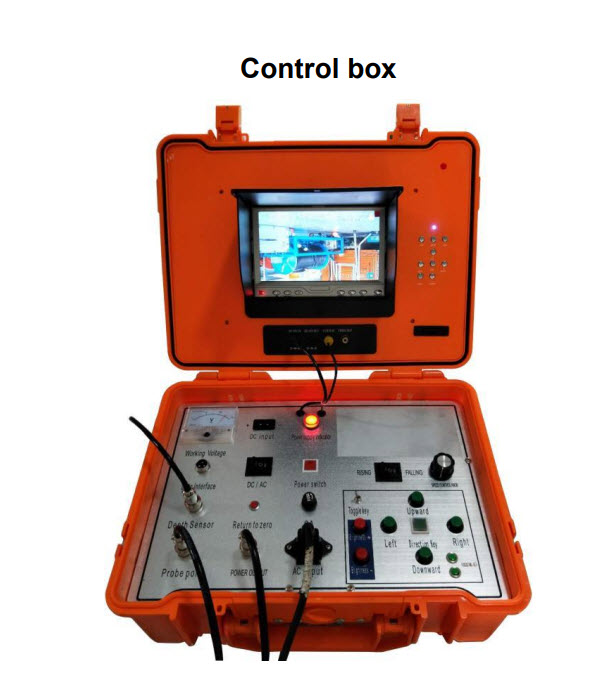

- Control Box Alluminum box 220V input

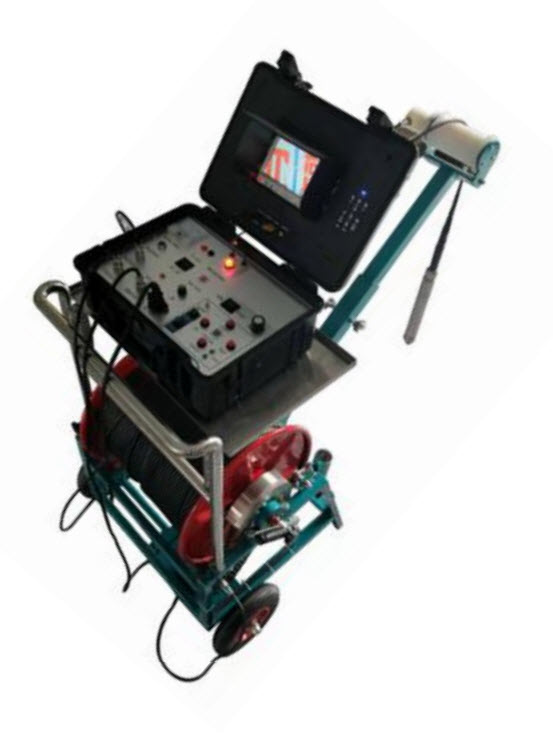

- Electric winch
- Display 7 inches high brightness LED display
- Control and video system
- HD SD card video recorder, control box panel buttons to operate the rotation of downhole camera;
- Adjust the brightness and focal length of the camera light source and the up and down speed of the cable and camera probe
- Depth counter Accuracy 0.005M
- Cable 6 cores, 400M length
- Centraliser High elasticity stainless steel centraliser
- Tool Box： Connection wires and accessories
- Voltage input: 220V
- Depth interface: Connect depth sensor, depth real-time display
- Probe interface: connect probe, transmit video and power supply
- Data interface: calibrate depth, edit well number, well position
- Video system: HD SD card video recorder 16G SD card recording system, maximum support 32G
- Depth return to zero: Before logging, please return depth to zero for accurate counting
- Display: 7 “high light LED display, outdoor visible
- Control box panel buttons: operate the rotation of the downhole camera, the brightness of the
camera light source, and the adjustment of the focal length, and the cable and camera probe rise
and fall and speed.
