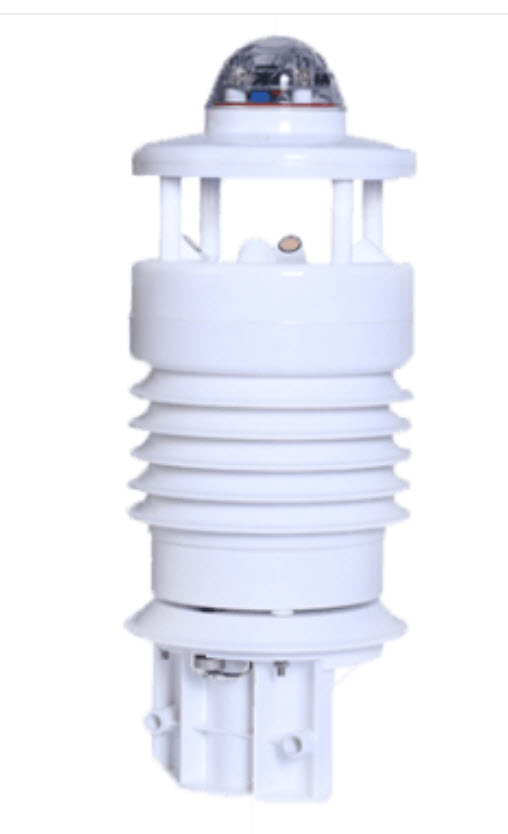

The Air Quality Monitoring Sensors are low-cost all-in-one monitoring sensors, which changes the layout of the traditional monitoring industry.

Accurate measurement can be achieved by modern optical and electrochemical technology. Effective information can be output 24 hours uninterruptedly, providing guidance for the further occurrence and spread of pollution.

Used in the following environments –

Smart Street Lighting System
Tower Crane Ultrasonic Anemometer
Agricultural Weather Station
Transmission Lines Weather Station
Meteorological Weather Station
Wind Power

Advantages

Maintenance-free
Easy to install without moving parts
low power consumption
Diversity of power supply
wireless communication
Data Hosting, Providing Information Reminder Function

MONITORING PARAMETERS	PM1.0 / PM2.5 / PM10 / TSP / Noise / Temperature / Humidity / Pressure / Wind Speed / Wind Direction / Rain / Radiation / UVI / CO / SO2 / NO2 / O3 / VOCs / Photopraph
MONITORING PRINCIPLE	Laser Scattering Mems Electrochemistry
POWER-IN	DC12/24V / Solar Power
INTERFACE	RS485/RS232/Wifi/BT/LTE

ITEM	PARAMETERS	ZAQ250	ZAQ260	ZAQ270	ZAQ280	ZAQ380	ZAQ550	ZAQ650	ZAQ560	ZAQ660
Particle	Principle: Laser Scattering Measure Type: PM1.0/PM2.5/PM10 Measure Range: 0-1000ug/m3 Measure Resolution: 0.3ug/m3 Measure Accuracy: ±15% or ±10μg/m3	■	■	■	■	■	■	■	■	■
Noise	Measure Range: 30-130dB(A) Measure Accuracy: 1.5dB	■	■	■	■	■
Temperature	Measure Range: -40-85°C Measure Resolution: 0.1°C Measure Accuracy: 0.3°C	■	■	■	■	■	■	■	■	■
Humidity	Measure Range: 0-100% Measure Resolution: 0.1% Measure Accuracy: 2%	■	■	■	■	■	■	■	■	■
Pressure	Measure Range: 10-1200hPa Measure Resolution: 0.1hPa Measure Accuracy: 0.3hPa (At 25°C)	■	■	■	■	■	■	■	■	■
Wind Direction	Measure Range: 0-360° Measure Resolution: 0.1° Measure Accuracy: 3°	■	■	■	■	■	■	■	■	■
Wind Speed	Measure Range: 0-60m/s Measure Resolution: 0.1m/s Measure Accuracy: ±0.3m/s or ±3%	■	■	■	■	■	■	■	■	■
Raindfall	Measure Range: 0-200mm/Hour Measure Resolution: 0.2mm Measure Accuracy: 3%*		■	■	■	■			■	■
Radiation	Measure Range: 0-2000w/m2 Measure Resolution: 1w/m2 Measure Accuracy: 5%*			■	■	■
UVI	Principle: Silicon Light Measure Range: 0-15 UVI				■	■
Photogragh	1920*1080					■		■		■
CO	Measure Range: 0-1000ppm Measure Resolution: 0.1ppm						■	■	■	■
SO2	Measure Range: 0-20ppm Measure Resolution: 1ppb						■	■	■	■
NO2	Measure Range: 0-20ppm Measure Resolution: 1ppb						■	■	■	■
O3	Measure Range: 0-20ppm Measure Resolution: 1ppb						■	■	■	■
Compass	Principle: Electronic Measure Range: 0-360° Measure Resolution: 0.1° Measure Accuracy: 1°*	ZAQ25C	ZAQ26C	ZAQ27C	ZAQ28C	ZAQ38C	ZAQ55C	ZAQ65C	ZAQ56C	ZAQ66C
GPS	Build-in Module	ZAQ25G	ZAQ26G	ZAQ27G	ZAQ28G	ZAQ38G	ZAQ55G	ZAQ65G	ZAQ56G	ZAQ66G
Wireless	LTE/Wifi/Bluetooth/Lora	LTE -G Wifi -W Lora -L
